Additional Attributes:
- GTIN: 00036584409045
- Basic Operating RPM Range: 1,000-4,000
- Exhaust Valve Lash: 0.014
- Intake Valve Lash: 0.012
- Recommended Valve Spring Kit: N/A
- Grind Number: 245NSR
- Camshaft Material: Billet Steel
- Lifters Included: No
- Assembly Lubricant Included: No
- Lobe Separation: 105
- Valve Springs Required: No
- Engine Family: 2003-2010 Ford 6.0/6.4L Powerstroke Diesel
- Camshaft Series: LST NSR
- Cam Type: Hydraulic Roller
- Lifter Style: Hydraulic Roller
- Intake Valve Lift: 0.367
- Exhaust Valve Lift: 0.371
- Usage: Street
- Advertised Exhaust Duration: 258
- Advertised Intake Duration: 245
- Exhaust Duration at .050 inch Lift: 198
- Intake Duration at .050 Inch Lift: 180
- Computer Tune Required?: No
Extened Information:
- Life Cycle Status: Available To Order
- Emissions : Not in CA
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 22.5 x 2.4 x 2.4 inches
PDF:

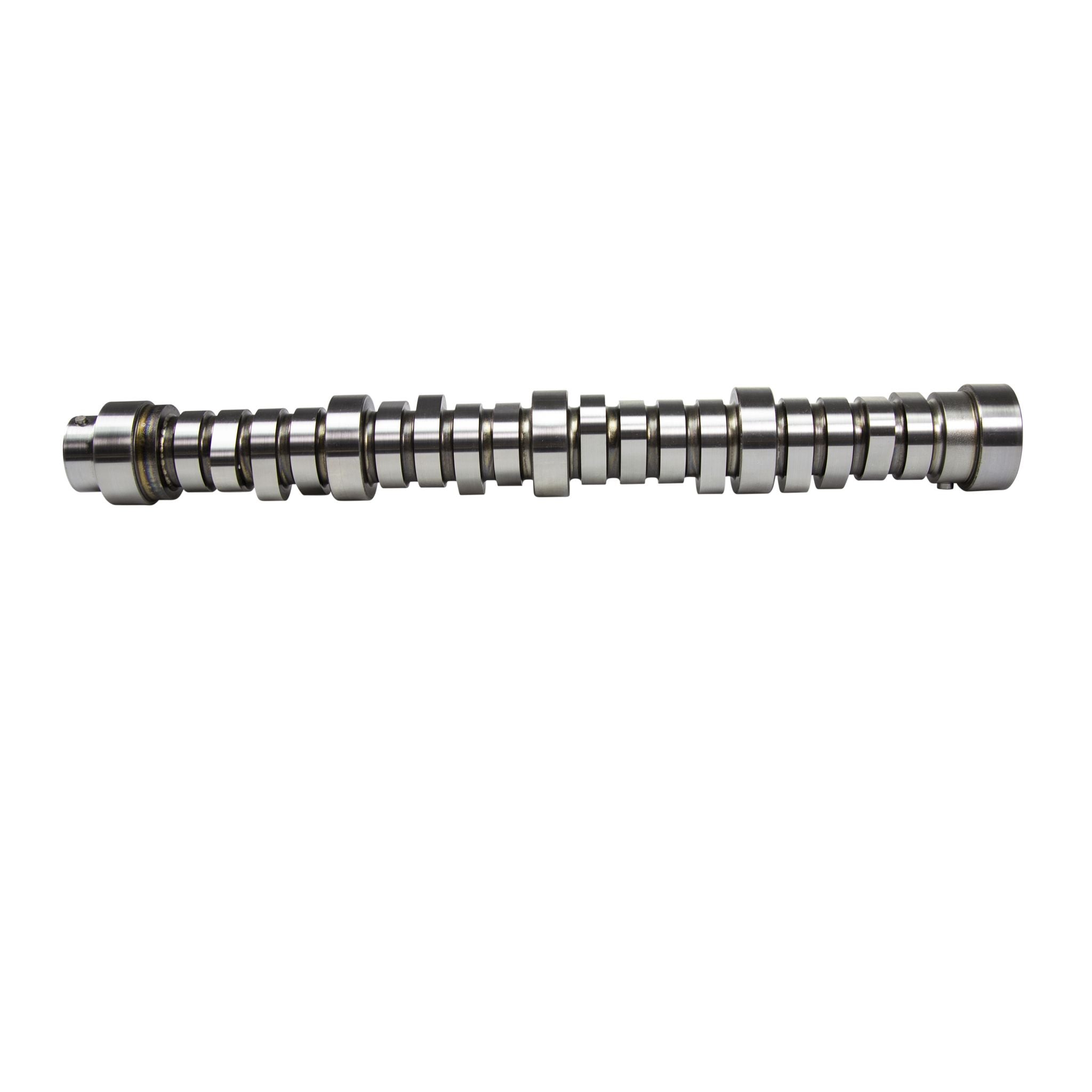

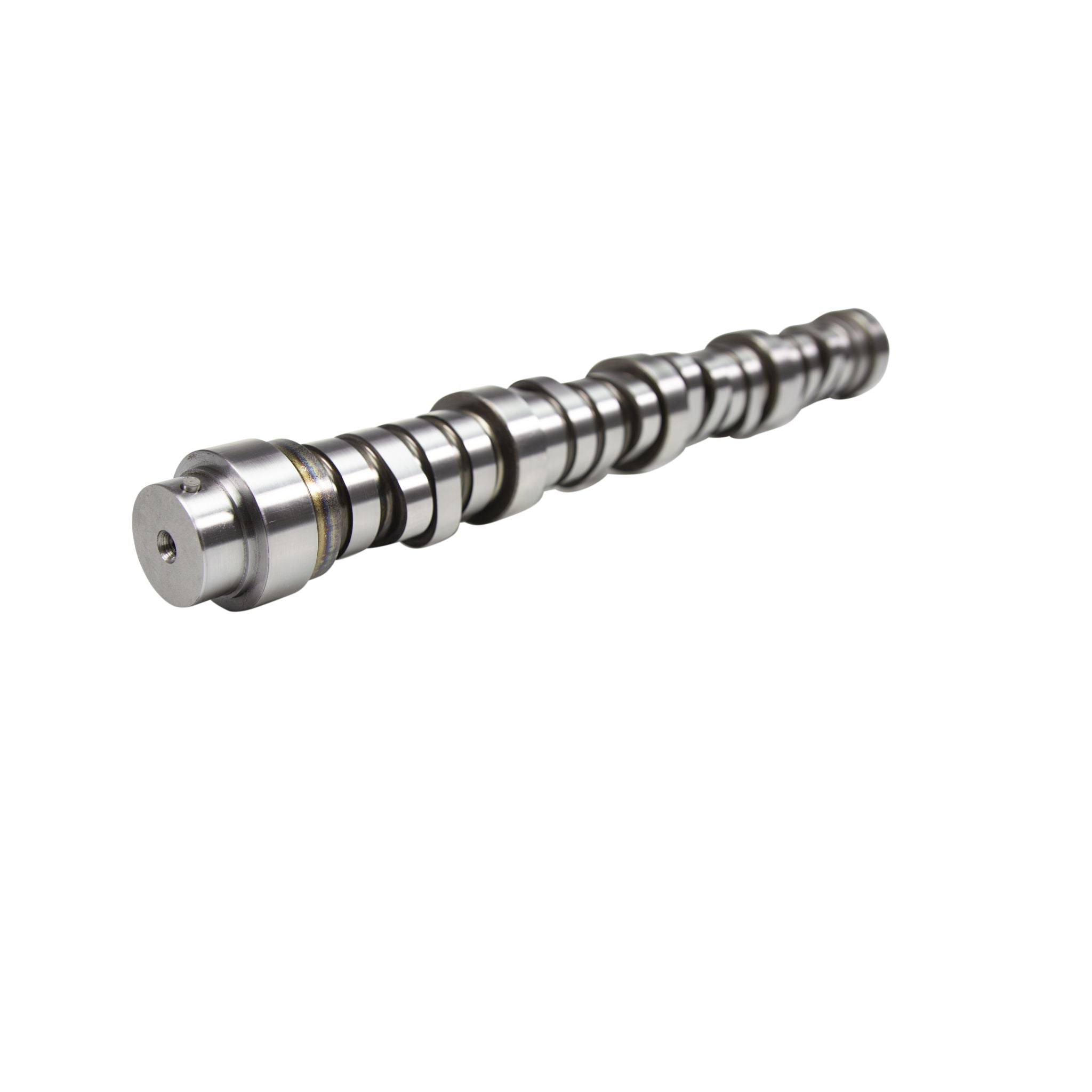

dddbebdc29809COMP Cams Stage 1 LST Hydraulic Roller Camshaft for 03-10 Ford Powerstroke 6.0/6.4L - 435-300-13
